Drone Detection System Architecture

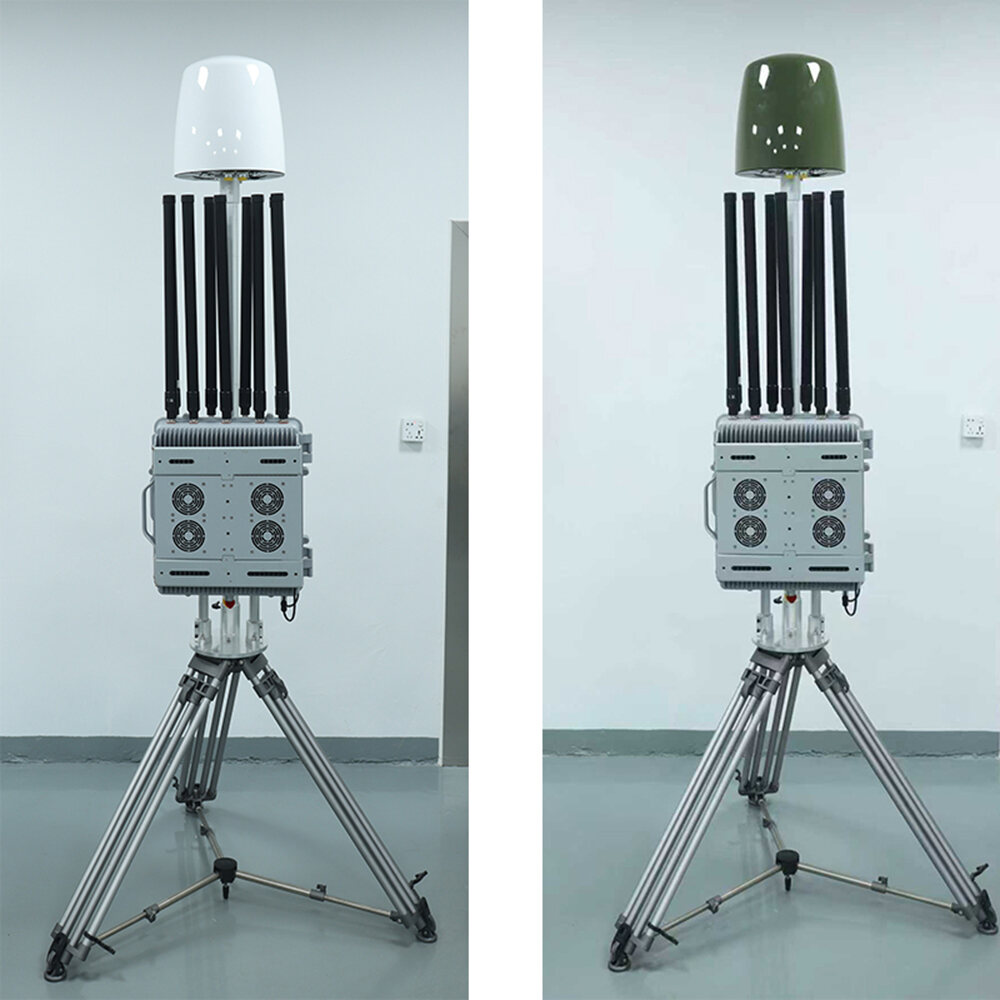

The Drone Detection System UVA-T1CP is a networked counter-UAS system that pairs a fixed detection and positioning unit with an automatic nine-band jammer. Designed for residences, offices, airports and military sites, it blocks control, GNSS and video links while limiting impact on other local devices, and detects 900+ drone types including DJI O4, Autel and FIMI.

Integration is the strength of the drone detection system. Instead of separate detection and jamming boxes, the UVA-T1CP is a networked system where the detector and the nine-band jammer share a single decision loop. When the detection unit confirms a drone, the system can automatically engage the jammer, reducing the response time from human-dependent to machine-speed.

The counter-drone architecture is built for fixed outdoor sites. The detector weighs only 5.5 kg and covers 100 MHz-6 GHz; the jammer is a heavier, 45 kg unit with 550 W total output across nine bands and omnidirectional antennas. Operators can select manual or automatic jamming, and choose return-to-home or forced landing by adjusting the output power. This flexibility lets the same system handle a lost hobby drone humanely or push a hostile intruder into a controlled landing.

Because it is designed for continuous operation, the UVA-T1CP runs from AC 220 V or DC 24-28 V, with smart cooling and protection for -35 to +65 °C environments. It connects to low-altitude management platforms, which is essential for airports and military operations centres that need a single airspace picture. With 1200 W maximum power, detection to 5 km and jamming out to 3 km, the drone detection system is the most complete fixed counter-UAS package in the AeroGuard range.

Automated threat prioritization algorithms dynamically evaluate target vector trajectory, speed, and signal protocols, instantly deploying optimal countermeasure suppression patterns without requiring manual operator intervention.

Industrial-grade weatherproofing and surge-protected electrical interfaces guarantee reliable round-the-clock protection across critical infrastructure sites, airports, and border installations.
