Drone Radar Detector Backpack — All-in-One Portable Counter-Drone System

Drone Radar Detector Backpack Features

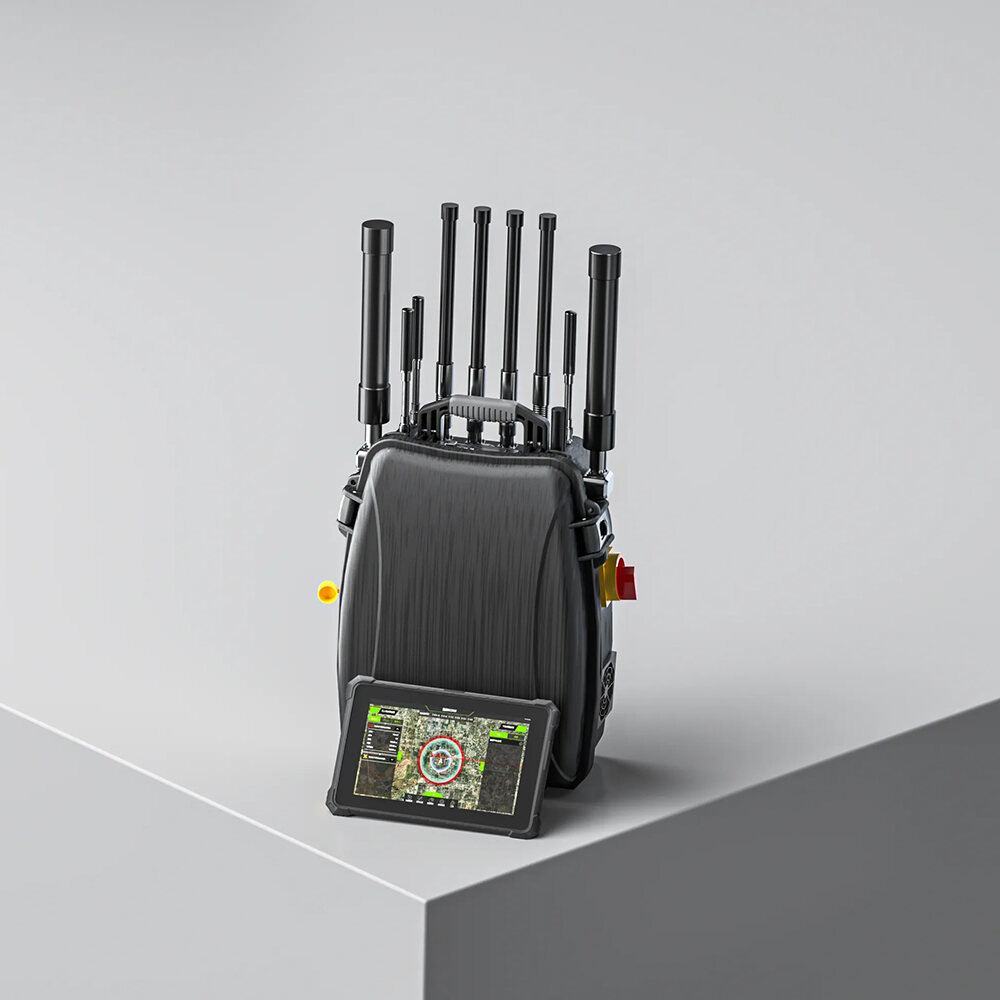

The Drone Radar Detector Backpack U-BP1000P is an all-in-one portable counter-drone system that combines drone detection, drone location and drone jamming in a single backpack platform. Message analysis and image-transmission detection reach out to 3 km, while hierarchical suppression covers up to 1 km, giving small teams the full detection-location-jamming chain without a vehicle or fixed installation.

For teams that must stay mobile, the drone radar detector backpack eliminates the trade-off between capability and transport. The complete system, including battery and integrated antennas, weighs no more than 13 kg and is built around a rugged three-proof tablet that acts as the control terminal. It can run on its internal battery or on DC 28 V, which means operators can work from a vehicle, a boat or a temporary command post without changing the setup.

The U-BP1000P is engineered for multiple threat classes, from hobbyist quadcopters to FPV racers and commercial drones. It performs protocol analysis for DJI O2/O3/O4 and national-standard messages, and it can also identify drones solely by their image-transmission signal. Jamming is hierarchical: fixed-frequency output on 1.5/2.4/5.2/5.8 GHz handles known consumer bands, while the write-frequency mode sweeps 100 MHz-6 GHz for unusual or emerging links. Operators choose automatic one-click response for speed or manual precision control for complex engagements.

From an operational standpoint, the drone radar detector backpack gives a single operator the same workflow as a fixed station: detect the intruder, locate it on the map, confirm the model and then suppress the control or video link. The system logs each engagement, which supports after-action review and operator training. For event security, convoy protection, base perimeter patrols and rapid-response tasks, the drone radar detector backpack is the most complete portable counter-UAS solution in this class.

Ergonomic padded harness padding and optimized weight distribution reduce operator fatigue during long tactical foot patrols along rugged borderlines and wild perimeter lines. The weather-sealed backpack frame protects high-gain directional array antennas and digital signal processing units from rain, dust, and physical shocks.

Integrated dual-band radio link capabilities transmit target telemetry to command centers in real time, allowing multi-operator defensive synchronization across wide perimeter defense sectors.
